New Switchcraft Shielded Multi-Con-X Connectors

19th February 2021

New Switchcraft Multi-Con-X Shielded Connectors released. Available now from leading Switchcraft UK Distributor - CIE Electronics.

Switchcraft - leading manufacturer of professional and industrial cables & connectors - has released the latest in their range of IP-rated, harsh environment connectors - the Shielded Multi-Con-X Connectors.

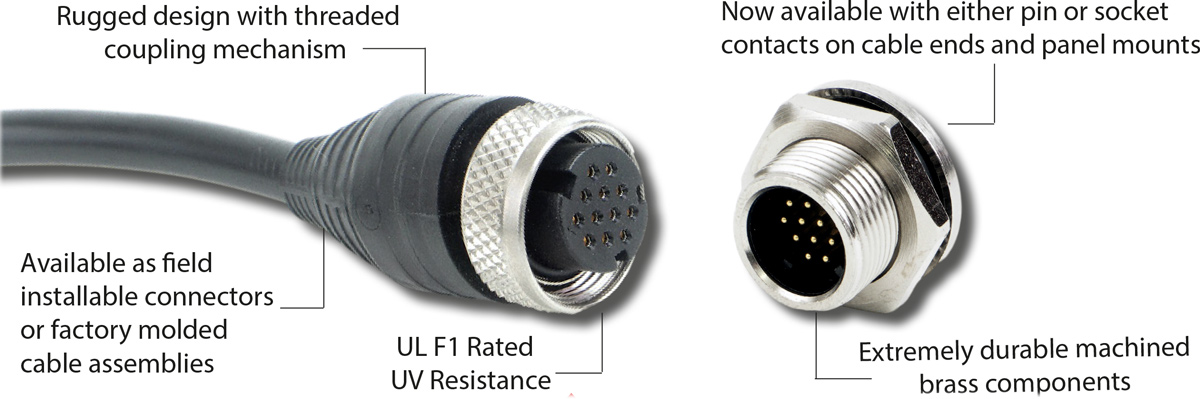

Shielded Multi-Con-X Connectors

The Shielded Multi-Con-X has been used for years as a rugged harsh environment connector with added RF/EMI protection. This latest version also offers the option of female sockets and the panel mount receptacle and male pins on the cable end connector, allowing you to choose the option that best fits the direction of signal flow for added safety.

The Multi-Con-X is also sealed to IP68 and offers UL F1 rated UV resistance.

Multi-Con-X

Switchcraft Multi-Con-X Insta-Click

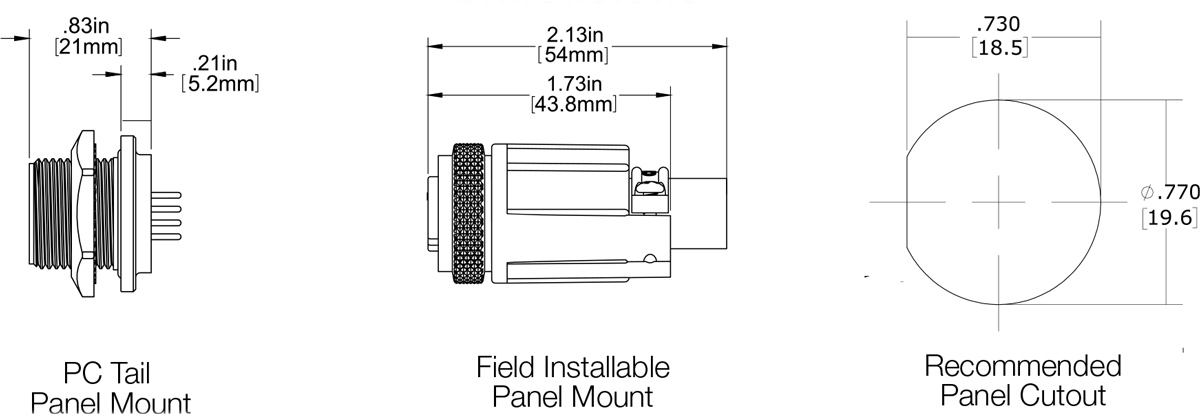

Multi-Con-X Shielded Connectors - DIMENSIONS

Multi-Con-X Dimensions






Ordering Codes for Switchcraft Shielded Multi-Con-X connectors

PART NUMBER DESCRIPTION
SF3282-2PG-520 Shielded Multi-Con-X Connectors, Cable End, 2 Male Pins, Solder, 0.200" Grommet ID
SF3282-3PG-520 Shielded Multi-Con-X Connectors, Cable End, 3 Male Pins, Solder, 0.200" Grommet ID
SF3282-4PG-520 Shielded Multi-Con-X Connectors, Cable End, 4 Male Pins, Solder, 0.200" Grommet ID
SF3282-5PG-520 Shielded Multi-Con-X Connectors, Cable End, 5 Male Pins, Solder, 0.200" Grommet ID
SF3282-6PG-520 Shielded Multi-Con-X Connectors, Cable End, 6 Male Pins, Solder, 0.200" Grommet ID
SF3282-7PG-520 Shielded Multi-Con-X Connectors, Cable End, 7 Male Pins, Solder, 0.200" Grommet ID
SF3282-8PG-520 Shielded Multi-Con-X Connectors, Cable End, 8 Male Pins, Solder, 0.200" Grommet ID
SF3282-9PG-520 Shielded Multi-Con-X Connectors, Cable End, 9 Male Pins, Solder, 0.200" Grommet ID
SF3282-10PG-520 Shielded Multi-Con-X Connectors, Cable End, 10 Male Pins, Solder, 0.200" Grommet ID
SF3282-11PG-520 Shielded Multi-Con-X Connectors, Cable End, 11 Male Pins, Solder, 0.200" Grommet ID
SF3282-12PG-520 Shielded Multi-Con-X Connectors, Cable End, 12 Male Pins, Solder, 0.200" Grommet ID
SF3282-2PG-540 Shielded Multi-Con-X Connectors, Cable End, 2 Male Pins, Solder, 0.400" Grommet ID
SF3282-3PG-540 Shielded Multi-Con-X Connectors, Cable End, 3 Male Pins, Solder, 0.400" Grommet ID
SF3282-4PG-540 Shielded Multi-Con-X Connectors, Cable End, 4 Male Pins, Solder, 0.400" Grommet ID
SF3282-5PG-540 Shielded Multi-Con-X Connectors, Cable End, 5 Male Pins, Solder, 0.400" Grommet ID
SF3282-6PG-540 Shielded Multi-Con-X Connectors, Cable End, 6 Male Pins, Solder, 0.400" Grommet ID
SF3282-7PG-540 Shielded Multi-Con-X Connectors, Cable End, 7 Male Pins, Solder, 0.400" Grommet ID
SF3282-8PG-540 Shielded Multi-Con-X Connectors, Cable End, 8 Male Pins, Solder, 0.400" Grommet ID
SF3282-9PG-540 Shielded Multi-Con-X Connectors, Cable End, 9 Male Pins, Solder, 0.400" Grommet ID
SF3282-10PG-540 Shielded Multi-Con-X Connectors, Cable End, 10 Male Pins, Solder, 0.400" Grommet ID
SF3282-11PG-540 Shielded Multi-Con-X Connectors, Cable End, 11 Male Pins, Solder, 0.400" Grommet ID
SF3282-12PG-540 Shielded Multi-Con-X Connectors, Cable End, 12 Male Pins, Solder, 0.400" Grommet ID
SF4282-2SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 2 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-3SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 3 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-4SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 4 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-5SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 5 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-6SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 6 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-7SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 7 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-8SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 8 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-9SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 9 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-10SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 10 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-11SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 11 Female Sockets, Solder, Sealed w/ Epoxy
SF4282-12SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 12 Female Sockets, Solder, Sealed w/ Epoxy
SF4281-2SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 2 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-3SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 3 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-4SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 4 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-5SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 5 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-6SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 6 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-7SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 7 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-8SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 8 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-9SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 9 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-10SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 10 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-11SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 11 Female Sockets, PC Tail, Sealed w/ Epoxy
SF4281-12SG-3ES Shielded Multi-Con-X Connectors, Panel Mount, 12 Female Sockets, PC Tail, Sealed w/ Epoxy

Contact the CIE Electronics team for more information

CIE is the main UK distributor for the complete range of Switchcraft and Conxall professional connectors and cables. Please contact the team today for full details, product pricing or samples.

Download the Switchcraft CG Series connector PDF
